Item # |
Request Quote |
Item name |
Gross Weight |
Nett Weight |
Diameter Eye |
Diameter Pin |
Length Bolt |
Length |
Length Inside |
Width Bow |
Width Eye |
Width |
Width Inside |
Working Load Limit |
Width Locking Clamp |
Bearing Surface |
Diameter Body |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

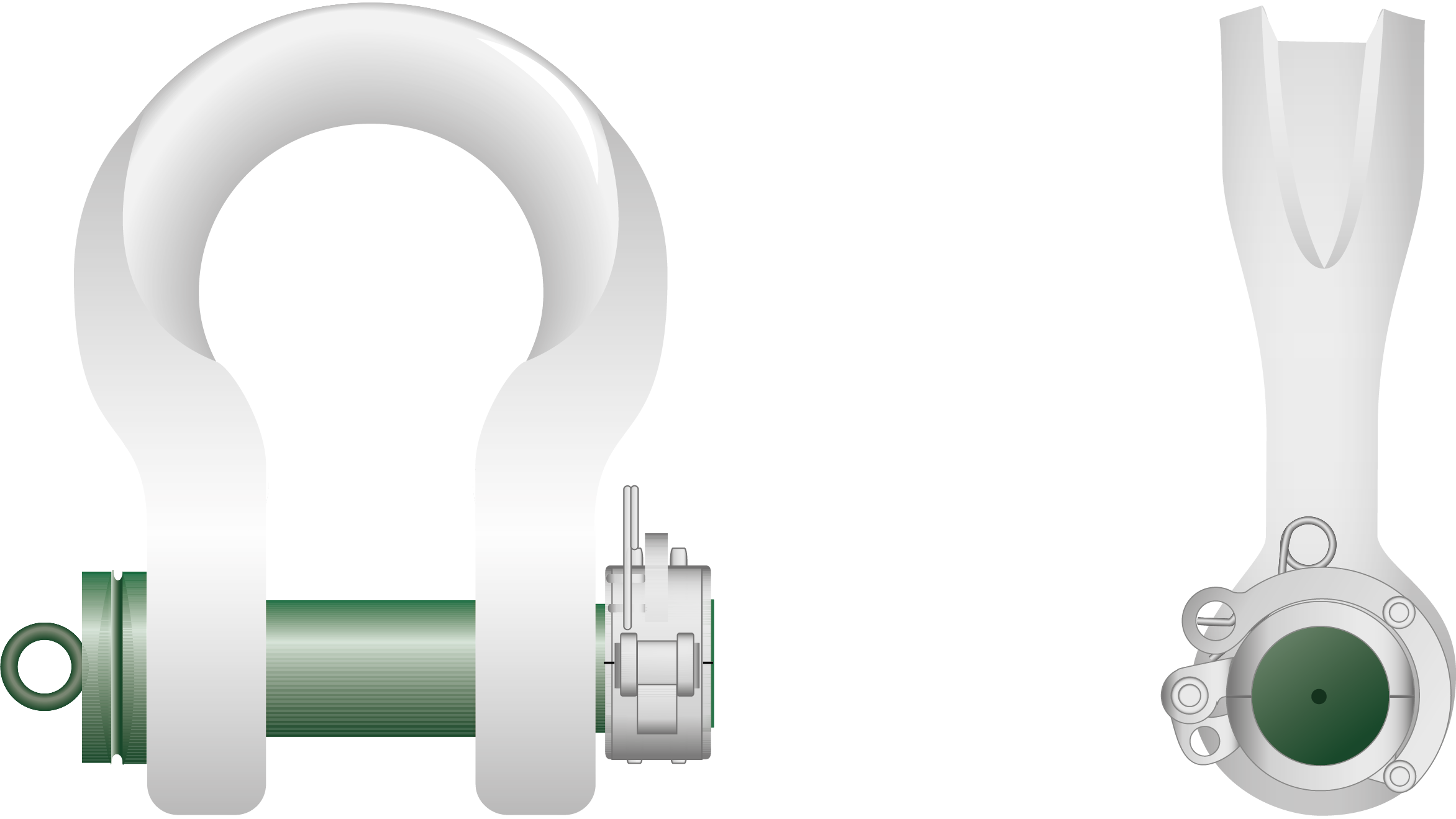

| SLGPF0012ROVRLLC SLGPF0012ROVRLLC/Asset/P-6065 illu.png | Quote | Item name N/A WLL12.5T,lock Green Pin Rov Sling Shackle Clamp | Gross Weight N/A 9.42 lbs | Nett Weight N/A 9.42 lbs | Diameter Eye N/A 2 3/8 in | Diameter Pin N/A 1 1/8 in | Length Bolt N/A 5 5/8 in | Length N/A 7 3/4 in | Length Inside N/A 4 3/4 in | Width Bow N/A 3 1/4 in | Width Eye N/A 1 in | Width N/A 5 3/4 in | Width Inside N/A 1 3/4 in | Working Load Limit N/A 12.5 | Width Locking Clamp N/A 1 7/32 in | Bearing Surface N/A 2 1/8 in | Diameter Body N/A 1 1/8 in |
Add To Cart
Request Quote |
| SLGPF0018ROVRLLC SLGPF0018ROVRLLC/Asset/P-6065 illu.png | Quote | Item name N/A 18T, Green Pin Rov Sling Shackle WLL Lock Clamp | Gross Weight N/A 15.1 lbs | Nett Weight N/A 15.1 lbs | Diameter Eye N/A 2 23/32 in | Diameter Pin N/A 1 3/8 in | Length Bolt N/A 7 1/4 in | Length N/A 9 13/32 in | Length Inside N/A 5 13/16 in | Width Bow N/A 4 1/32 in | Width Eye N/A 1 3/16 in | Width N/A 7 3/32 in | Width Inside N/A 2 1/8 in | Working Load Limit N/A 18 | Width Locking Clamp N/A 1 7/32 in | Bearing Surface N/A 2 17/32 in | Diameter Body N/A 1 3/8 in |
Add To Cart
Request Quote |
| SLGPF0030ROVRLLC SLGPF0030ROVRLLC/Asset/P-6065 illu.png | Quote | Item name N/A 30T, Green Pin Rov Sling Shackle WLL Lock Clamp | Gross Weight N/A 27.5 lbs | Nett Weight N/A 27.5 lbs | Diameter Eye N/A 3 17/32 in | Diameter Pin N/A 1 21/32 in | Length Bolt N/A 8 9/32 in | Length N/A 10 31/32 in | Length Inside N/A 6 1/2 in | Width Bow N/A 4 31/32 in | Width Eye N/A 1 3/8 in | Width N/A 7 7/8 in | Width Inside N/A 2 23/32 in | Working Load Limit N/A 30 | Width Locking Clamp N/A 1 9/16 in | Bearing Surface N/A 3 1/8 in | Diameter Body N/A 1 9/16 in |
Add To Cart
Request Quote |
| SLGPF0040ROVRLLC SLGPF0040ROVRLLC/Asset/P-6065 illu.png | Quote | Item name N/A 40T, Green Pin Rov Sling Shackle WLL Lock Clamp | Gross Weight N/A 44.7 lbs | Nett Weight N/A 44.7 lbs | Diameter Eye N/A 4 9/32 in | Diameter Pin N/A 2 in | Length Bolt N/A 10 3/32 in | Length N/A 13 1/32 in | Length Inside N/A 7 27/32 in | Width Bow N/A 5 1/2 in | Width Eye N/A 1 25/32 in | Width N/A 9 1/4 in | Width Inside N/A 3 5/16 in | Working Load Limit N/A 40 | Width Locking Clamp N/A 1 9/16 in | Bearing Surface N/A 3 13/16 in | Diameter Body N/A 2 5/32 in |
Add To Cart
Request Quote |
| SLGPF0055ROVRLLC SLGPF0055ROVRLLC/Asset/P-6065 illu.png | Quote | Item name N/A 55T, Green Pin Rov Sling Shackle WLL Lock Clamp | Gross Weight N/A 67.1 lbs | Nett Weight N/A 67.1 lbs | Diameter Eye N/A 4 17/32 in | Diameter Pin N/A 2 1/4 in | Length Bolt N/A 11 3/8 in | Length N/A 15 5/16 in | Length Inside N/A 9 7/16 in | Width Bow N/A 6 5/16 in | Width Eye N/A 2 5/32 in | Width N/A 10 5/8 in | Width Inside N/A 3 17/32 in | Working Load Limit N/A 55 | Width Locking Clamp N/A 1 9/16 in | Bearing Surface N/A 3 15/16 in | Diameter Body N/A 2 3/8 in |
Add To Cart
Request Quote |
| SLGPF0075ROVRLLC SLGPF0075ROVRLLC/Asset/P-6065 illu.png | Quote | Item name N/A 75T, Green Pin Rov Sling Shackle WLL Lock Clamp | Gross Weight N/A 121 lbs | Nett Weight N/A 121 lbs | Diameter Eye N/A 4 29/32 in | Diameter Pin N/A 2 3/4 in | Length Bolt N/A 12 15/32 in | Length N/A 18 5/8 in | Length Inside N/A 11 13/32 in | Width Bow N/A 7 9/32 in | Width Eye N/A 2 1/8 in | Width N/A 12 15/32 in | Width Inside N/A 4 11/32 in | Working Load Limit N/A 75 | Width Locking Clamp N/A 1 9/16 in | Bearing Surface N/A 4 23/32 in | Diameter Body N/A 2 11/16 in |
Add To Cart
Request Quote |
| SLGPF0125ROVRLLC SLGPF0125ROVRLLC/Asset/P-6065 illu.png | Quote | Item name N/A 125T,lock Green Pin Rov Sling Shackle WLL Clamp | Gross Weight N/A 194 lbs | Nett Weight N/A 194 lbs | Diameter Eye N/A 6 1/16 in | Diameter Pin N/A 3 5/32 in | Length Bolt N/A 16 1/4 in | Length N/A 22 15/16 in | Length Inside N/A 14 13/32 in | Width Bow N/A 8 21/32 in | Width Eye N/A 3 11/32 in | Width N/A 15 11/32 in | Width Inside N/A 5 13/32 in | Working Load Limit N/A 125 | Width Locking Clamp N/A 1 9/16 in | Bearing Surface N/A 5 29/32 in | Diameter Body N/A 3 11/32 in |
Add To Cart
Request Quote |
| SLGPF0150ROVRLLC SLGPF0150ROVRLLC/Asset/P-6065 illu.png | Quote | Item name N/A 150T,lock Green Pin Rov Sling Shackle WLL Clamp | Gross Weight N/A 309 lbs | Nett Weight N/A 309 lbs | Diameter Eye N/A 7 1/16 in | Diameter Pin N/A 3 3/4 in | Length Bolt N/A 17 17/32 in | Length N/A 25 13/32 in | Length Inside N/A 15 13/32 in | Width Bow N/A 9 31/32 in | Width Eye N/A 3 1/2 in | Width N/A 17 3/32 in | Width Inside N/A 5 25/32 in | Working Load Limit N/A 150 | Width Locking Clamp N/A 2 5/32 in | Bearing Surface N/A 6 11/16 in | Diameter Body N/A 3 11/16 in |
Add To Cart
Request Quote |
| SLGPF0200ROVRLLC SLGPF0200ROVRLLC/Asset/P-6065 illu.png | Quote | Item name N/A 200T,lock Green Pin Rov Sling Shackle WLL Clamp | Gross Weight N/A 452 lbs | Nett Weight N/A 452 lbs | Diameter Eye N/A 7 27/32 in | Diameter Pin N/A 4 1/8 in | Length Bolt N/A 18 29/32 in | Length N/A 29 7/8 in | Length Inside N/A 18 15/16 in | Width Bow N/A 11 1/32 in | Width Eye N/A 3 15/16 in | Width N/A 18 31/32 in | Width Inside N/A 6 7/32 in | Working Load Limit N/A 200 | Width Locking Clamp N/A 2 5/32 in | Bearing Surface N/A 8 1/16 in | Diameter Body N/A 4 11/32 in |
Add To Cart
Request Quote |
| SLGPF0250ROVRLLC SLGPF0250ROVRLLC/Asset/P-6065 illu.png | Quote | Item name N/A 250T,lock Green Pin Rov Sling Shackle WLL Clamp | Gross Weight N/A 617 lbs | Nett Weight N/A 617 lbs | Diameter Eye N/A 8 15/16 in | Diameter Pin N/A 4 23/32 in | Length Bolt N/A 20 19/32 in | Length N/A 33 13/16 in | Length Inside N/A 21 11/32 in | Width Bow N/A 11 13/16 in | Width Eye N/A 4 11/32 in | Width N/A 20 7/8 in | Width Inside N/A 7 1/16 in | Working Load Limit N/A 250 | Width Locking Clamp N/A 2 5/32 in | Bearing Surface N/A 9 7/16 in | Diameter Body N/A 4 31/32 in |
Add To Cart
Request Quote |
| SLGPF0300ROVRLLC SLGPF0300ROVRLLC/Asset/P-6065 illu.png | Quote | Item name N/A 300T,lock Green Pin Rov Sling Shackle WLL Clamp | Gross Weight N/A 838 lbs | Nett Weight N/A 838 lbs | Diameter Eye N/A 9 21/32 in | Diameter Pin N/A 5 9/32 in | Length Bolt N/A 22 5/32 in | Length N/A 37 9/32 in | Length Inside N/A 23 21/32 in | Width Bow N/A 13 25/32 in | Width Eye N/A 4 13/16 in | Width N/A 24 13/32 in | Width Inside N/A 7 11/16 in | Working Load Limit N/A 300 | Width Locking Clamp N/A 2 5/32 in | Bearing Surface N/A 10 7/16 in | Diameter Body N/A 5 5/16 in |
Add To Cart
Request Quote |
