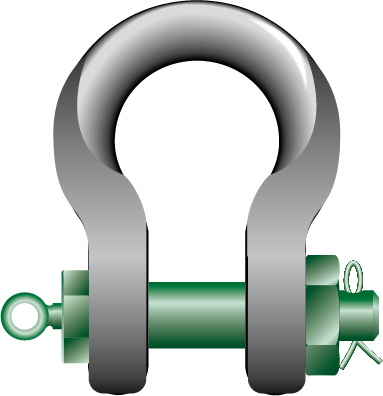

  • P-6033 Green Pin Sling Shackles Product Illustration

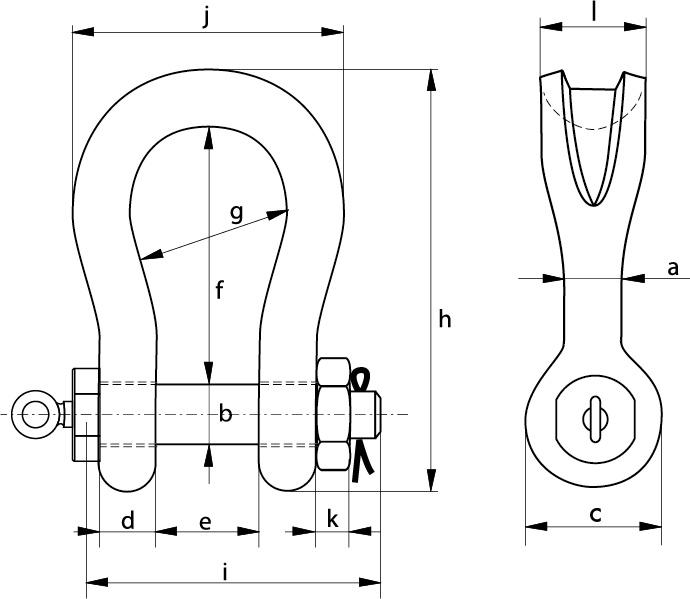

  • P-6033 Green Pin Sling Shackles Technical Drawing
1 - 35 of 35 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification

Item #

Item name

Diameter Eye

Diameter Pin

Length

Width

Add To Cart/Request Quote
N/A 7T 22x22 Green Pin Sling Shackle WLL N/A 1 13/16 in N/A 7/8 in N/A 6 in N/A 4 5/16 in Add To Cart
Request Quote
N/A 12.5T 29x28 Green Pin Sling Shackle WLL N/A 2 3/8 in N/A 1 1/8 in N/A 7 3/4 in N/A 5 3/4 in Add To Cart
Request Quote
N/A 18T 35x35 Green Pin Sling Shackle WLL N/A 2 23/32 in N/A 1 3/8 in N/A 9 13/32 in N/A 7 3/32 in Add To Cart
Request Quote
N/A 30T 40x42 Green Pin Sling Shackle WLL N/A 3 17/32 in N/A 1 21/32 in N/A 10 31/32 in N/A 7 7/8 in Add To Cart
Request Quote
N/A 40T 55x51 Green Pin Sling Shackle WLL N/A 4 9/32 in N/A 2 in N/A 13 1/32 in N/A 9 1/4 in Add To Cart
Request Quote
N/A 55 T 55T 60x57 Green Pin Sling Shackle WLL N/A 4 17/32 in N/A 2 1/4 in N/A 15 5/16 in N/A 10 5/8 in Add To Cart
Request Quote
N/A 75 T 75T 70x70 Green Pin Sling Shackle WLL N/A 4 31/32 in N/A 2 3/4 in N/A 18 5/8 in N/A 13 1/32 in Add To Cart
Request Quote
N/A 125 T 125T 85x80 Green Pin Sling Shackle WLL N/A 6 5/32 in N/A 3 5/32 in N/A 22 15/16 in N/A 15 11/32 in Add To Cart
Request Quote
N/A 150 T 150T 94x95 Green Pin Sling Shackle WLL N/A 7 1/8 in N/A 3 3/4 in N/A 25 1/2 in N/A 17 11/16 in Add To Cart
Request Quote
N/A 200 T 110x105 Green Pin Sling Shackle WLL N/A 7 29/32 in N/A 4 1/8 in N/A 29 7/8 in N/A 19 11/16 in Add To Cart
Request Quote
N/A 250 T 126x120 Green Pin Sling Shackle WLL N/A 9 1/32 in N/A 4 23/32 in N/A 33 27/32 in N/A 21 23/32 in Add To Cart
Request Quote
N/A 300 T 300T 135x134 Green Pin Sling Shackle WLL N/A 9 11/16 in N/A 5 9/32 in N/A 37 1/4 in N/A 24 13/32 in Add To Cart
Request Quote
N/A 400T 160x160 Green Pin Sling Shackle WLL N/A 11 5/8 in N/A 6 5/16 in N/A 39 3/16 in N/A 27 15/16 in Add To Cart
Request Quote
N/A 500T 170x180 Green Pin Sling Shackle WLL N/A 13 in N/A 7 3/32 in N/A 45 11/16 in N/A 33 15/32 in Add To Cart
Request Quote
N/A 600T 190x200 Green Pin Sling Shackle WLL N/A 14 3/16 in N/A 7 7/8 in N/A 49 3/4 in N/A 36 5/8 in Add To Cart
Request Quote
N/A 700T 200x215 Green Pin Sling Shackle WLL N/A 15 7/16 in N/A 8 15/32 in N/A 50 9/16 in N/A 35 15/32 in Add To Cart
Request Quote
N/A 800T 218x230 Green Pin Sling Shackle WLL N/A 16 17/32 in N/A 9 1/16 in N/A 56 5/32 in N/A 37 9/32 in Add To Cart
Request Quote
N/A 900T 242x255 Green Pin Sling Shackle WLL N/A 18 11/32 in N/A 10 1/32 in N/A 58 19/32 in N/A 40 9/32 in Add To Cart
Request Quote
N/A 1000T 260x27 Green Pin Sling Shackle WLL N/A 19 9/32 in N/A 10 5/8 in N/A 60 5/16 in N/A 43 19/32 in Add To Cart
Request Quote
N/A 1250 T 285x300 Green Pin Sling Shackle WLL N/A 20 3/32 in N/A 11 13/16 in N/A 65 19/32 in N/A 46 17/32 in Add To Cart
Request Quote
N/A 1550T 285x320 Green Pin Sling Shackle WLL N/A 21 21/32 in N/A 12 19/32 in N/A 67 5/16 in N/A 49 11/32 in Add To Cart
Request Quote
N/A 125 T Green Pin Power Sling Shackle WLL N/A 6 1/2 in N/A 3 3/16 in N/A 24 7/8 in N/A 14 9/16 in Add To Cart
Request Quote
N/A 150 T Green Pin Power Sling Shackle WLL N/A 7 5/32 in N/A 3 3/4 in N/A 27 11/16 in N/A 16 17/32 in Add To Cart
Request Quote
N/A 200 T Green Pin Power Sling Shackle WLL N/A 8 1/32 in N/A 4 1/8 in N/A 33 in N/A 18 21/32 in Add To Cart
Request Quote
N/A 250 T Green Pin Power Sling Shackle WLL N/A 9 3/8 in N/A 4 23/32 in N/A 36 15/16 in N/A 20 3/16 in Add To Cart
Request Quote
N/A 300 T Green Pin Power Sling Shackle WLL N/A 10 1/4 in N/A 5 9/32 in N/A 40 5/8 in N/A 23 25/32 in Add To Cart
Request Quote
N/A 400 T Green Pin Power Sling Shackle WLL N/A 12 in N/A 6 5/16 in N/A 44 7/32 in N/A 25 23/32 in Add To Cart
Request Quote
N/A 500 T Green Pin Power Sling Shackle WLL N/A 13 3/8 in N/A 7 3/32 in N/A 48 25/32 in N/A 30 1/32 in Add To Cart
Request Quote
N/A 600 T Green Pin Power Sling Shackle WLL N/A 14 3/8 in N/A 7 7/8 in N/A 53 5/16 in N/A 32 7/32 in Add To Cart
Request Quote
N/A 700 T Green Pin Power Sling Shackle WLL N/A 15 15/16 in N/A 8 15/32 in N/A 55 23/32 in N/A 35 5/32 in Add To Cart
Request Quote
N/A 800 T Green Pin Power Sling Shackle WLL N/A 16 15/16 in N/A 9 1/16 in N/A 60 29/32 in N/A 36 3/32 in Add To Cart
Request Quote
N/A 900 T Green Pin Power Sling Shackle WLL N/A 18 3/4 in N/A 10 1/32 in N/A 62 15/16 in N/A 38 9/32 in Add To Cart
Request Quote
N/A 1000 T Green Pin Power Sling Shackle WLL N/A 19 11/16 in N/A 10 5/8 in N/A 64 11/16 in N/A 40 1/4 in Add To Cart
Request Quote
N/A 1250 T Green Pin Power Sling Shackle WLL N/A 22 7/16 in N/A 11 13/16 in N/A 71 3/8 in N/A 45 1/32 in Add To Cart
Request Quote
N/A 1550 T Green Pin Power Sling Shackle WLL N/A 23 7/32 in N/A 12 19/32 in N/A 74 13/32 in N/A 47 5/8 in Add To Cart
Request Quote
