Item # |
Request Quote |
Item name |
Gross Weight |
Nett Weight |
Diameter Bow |
Diameter Eye |
Diameter Pin |
Length Bolt |
Length |
Length Inside |
Securing Bolt Length |
Securing Bolt Thread |
Thickness Nut |
Torque |
Width Bow |
Width Eye |
Width |
Width Inside |
Working Load Limit |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

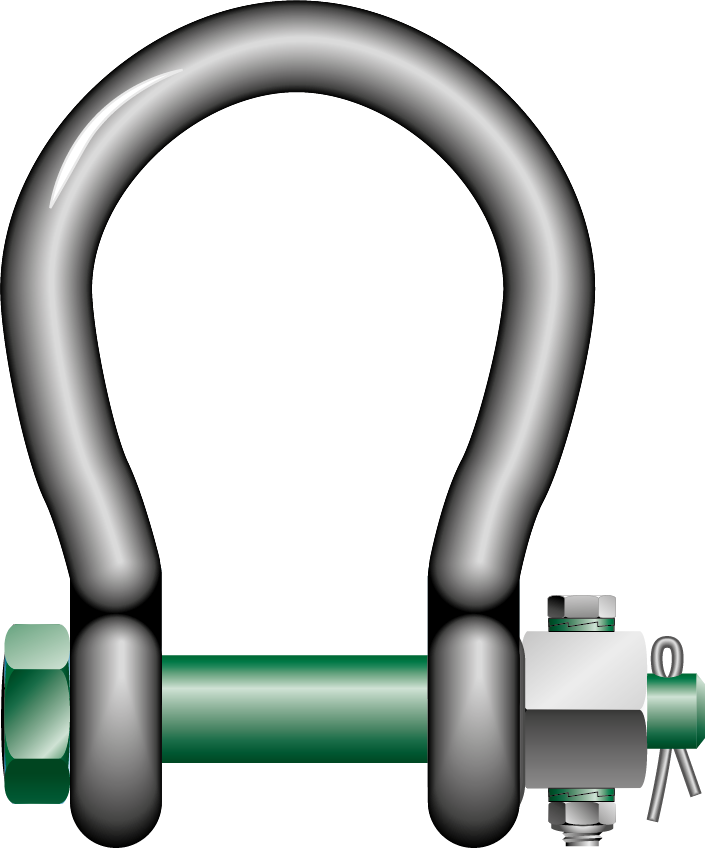

| ASGHMB22FN ASGHMB22FN/Asset/G-4243_illustration.png | Quote | Item name N/A Sh.4.75 T 22x25 Green Pin Fixed Nut Bigmouth Bow | Gross Weight N/A 4.59 lbs | Nett Weight N/A 4.59 lbs | Diameter Bow N/A 7/8 in | Diameter Eye N/A 2 1/16 in | Diameter Pin N/A 1 in | Length Bolt N/A 6 3/16 in | Length N/A 6 13/16 in | Length Inside N/A 4 13/32 in | Securing Bolt Length N/A 2 in | Securing Bolt Thread N/A 8 mm | Thickness Nut N/A 7/8 in | Torque N/A 22 | Width Bow N/A 3 15/32 in | Width Eye N/A 7/8 in | Width N/A 5 3/16 in | Width Inside N/A 2 15/32 in | Working Load Limit N/A 4.75 |
Add To Cart
Request Quote |
| ASGHMB25FN ASGHMB25FN/Asset/G-4243_illustration.png | Quote | Item name N/A Sh.6.5 T 25x28 Green Pin Fixed Nut Bigmouth Bow | Gross Weight N/A 6.92 lbs | Nett Weight N/A 6.92 lbs | Diameter Bow N/A 1 in | Diameter Eye N/A 2 5/16 in | Diameter Pin N/A 1 1/8 in | Length Bolt N/A 7 7/32 in | Length N/A 8 1/32 in | Length Inside N/A 5 5/16 in | Securing Bolt Length N/A 2 5/32 in | Securing Bolt Thread N/A 8 mm | Thickness Nut N/A 31/32 in | Torque N/A 22 | Width Bow N/A 4 1/8 in | Width Eye N/A 31/32 in | Width N/A 6 3/32 in | Width Inside N/A 2 15/16 in | Working Load Limit N/A 6.5 |
Add To Cart
Request Quote |
| ASGHMB28FN ASGHMB28FN/Asset/G-4243_illustration.png | Quote | Item name N/A 8.5 T 28x32 Green Pin Fixed Nut Bigmouth Bow Sh | Gross Weight N/A 9.61 lbs | Nett Weight N/A 9.61 lbs | Diameter Bow N/A 1 1/8 in | Diameter Eye N/A 2 19/32 in | Diameter Pin N/A 1 1/4 in | Length Bolt N/A 8 1/16 in | Length N/A 8 27/32 in | Length Inside N/A 5 13/16 in | Securing Bolt Length N/A 2 3/8 in | Securing Bolt Thread N/A 10 mm | Thickness Nut N/A 1 1/16 in | Torque N/A 43 | Width Bow N/A 4 17/32 in | Width Eye N/A 1 3/32 in | Width N/A 6 23/32 in | Width Inside N/A 3 7/32 in | Working Load Limit N/A 8.5 |
Add To Cart
Request Quote |
| ASGHMB32FN ASGHMB32FN/Asset/G-4243_illustration.png | Quote | Item name N/A 9.5 T 32x35 Green Pin Fixed Nut Bigmouth Bow Sh | Gross Weight N/A 13.1 lbs | Nett Weight N/A 13.1 lbs | Diameter Bow N/A 1 1/4 in | Diameter Eye N/A 2 27/32 in | Diameter Pin N/A 1 3/8 in | Length Bolt N/A 8 13/16 in | Length N/A 9 3/4 in | Length Inside N/A 6 3/8 in | Securing Bolt Length N/A 2 1/2 in | Securing Bolt Thread N/A 10 mm | Thickness Nut N/A 1 3/16 in | Torque N/A 43 | Width Bow N/A 4 31/32 in | Width Eye N/A 1 1/4 in | Width N/A 7 15/32 in | Width Inside N/A 3 17/32 in | Working Load Limit N/A 9.5 |
Add To Cart
Request Quote |
| ASGHMB35FN ASGHMB35FN/Asset/G-4243_illustration.png | Quote | Item name N/A Sh.12 T 35x38 Green Pin Fixed Nut Bigmouth Bow | Gross Weight N/A 17.4 lbs | Nett Weight N/A 17.4 lbs | Diameter Bow N/A 1 3/8 in | Diameter Eye N/A 3 1/8 in | Diameter Pin N/A 1 1/2 in | Length Bolt N/A 9 21/32 in | Length N/A 10 25/32 in | Length Inside N/A 7 3/32 in | Securing Bolt Length N/A 2 3/4 in | Securing Bolt Thread N/A 10 mm | Thickness Nut N/A 1 5/16 in | Torque N/A 43 | Width Bow N/A 5 1/2 in | Width Eye N/A 1 3/8 in | Width N/A 8 9/32 in | Width Inside N/A 3 15/16 in | Working Load Limit N/A 12 |
Add To Cart
Request Quote |
| ASGHMB38FN ASGHMB38FN/Asset/G-4243_illustration.png | Quote | Item name N/A Sh.16T 38x42 Green Pin Fixed Nut Bigmouth Bow | Gross Weight N/A 22.6 lbs | Nett Weight N/A 22.6 lbs | Diameter Bow N/A 1 1/2 in | Diameter Eye N/A 3 15/32 in | Diameter Pin N/A 1 5/8 in | Length Bolt N/A 9 3/4 in | Length N/A 12 9/16 in | Length Inside N/A 8 1/2 in | Securing Bolt Length N/A 2 15/16 in | Securing Bolt Thread N/A 8 mm | Thickness Nut N/A 3/4 in | Torque N/A 22 | Width Bow N/A 6 1/4 in | Width Eye N/A 1 1/2 in | Width N/A 9 1/4 in | Width Inside N/A 4 3/16 in | Working Load Limit N/A 16 |
Add To Cart
Request Quote |
| ASGHMB45FN ASGHMB45FN/Asset/G-4243_illustration.png | Quote | Item name N/A 25T 45x50 Green Pin Fixed Nut Bigmouth Bow Sh | Gross Weight N/A 36.9 lbs | Nett Weight N/A 36.9 lbs | Diameter Bow N/A 1 3/4 in | Diameter Eye N/A 4 1/16 in | Diameter Pin N/A 2 in | Length Bolt N/A 11 21/32 in | Length N/A 14 9/16 in | Length Inside N/A 9 3/4 in | Securing Bolt Length N/A 3 17/32 in | Securing Bolt Thread N/A 8 mm | Thickness Nut N/A 29/32 in | Torque N/A 22 | Width Bow N/A 6 7/8 in | Width Eye N/A 1 25/32 in | Width N/A 10 7/16 in | Width Inside N/A 5 in | Working Load Limit N/A 25 |
Add To Cart
Request Quote |
| ASGHMB50FN ASGHMB50FN/Asset/G-4243_illustration.png | Quote | Item name N/A 30 T 50x57 Green Pin Fixed Nut Bigmouth Bow Sh | Gross Weight N/A 55.1 lbs | Nett Weight N/A 55.1 lbs | Diameter Bow N/A 2 in | Diameter Eye N/A 4 13/32 in | Diameter Pin N/A 2 1/4 in | Length Bolt N/A 13 1/16 in | Length N/A 16 3/16 in | Length Inside N/A 10 3/4 in | Securing Bolt Length N/A 3 15/16 in | Securing Bolt Thread N/A 10 mm | Thickness Nut N/A 1 1/32 in | Torque N/A 43 | Width Bow N/A 8 5/32 in | Width Eye N/A 1 31/32 in | Width N/A 12 3/32 in | Width Inside N/A 5 3/4 in | Working Load Limit N/A 30 |
Add To Cart
Request Quote |
| ASGHMB65FN ASGHMB65FN/Asset/G-4243_illustration.png | Quote | Item name N/A 55T 65x70 Green Pin Fixed Nut Bigmouth Bow Sh | Gross Weight N/A 99.2 lbs | Nett Weight N/A 99.2 lbs | Diameter Bow N/A 2 1/2 in | Diameter Eye N/A 5 23/32 in | Diameter Pin N/A 2 3/4 in | Length Bolt N/A 15 5/16 in | Length N/A 19 3/16 in | Length Inside N/A 12 3/8 in | Securing Bolt Length N/A 4 23/32 in | Securing Bolt Thread N/A 12 mm | Thickness Nut N/A 1 1/4 in | Torque N/A 75 | Width Bow N/A 8 3/8 in | Width Eye N/A 2 9/16 in | Width N/A 13 1/2 in | Width Inside N/A 6 1/2 in | Working Load Limit N/A 55 |
Add To Cart
Request Quote |
| ASGHMB83FN ASGHMB83FN/Asset/G-4243_illustration.png | Quote | Item name N/A 75T 83x83 Green Pin Fixed Nut Bigmouth Bow Sh | Gross Weight N/A 154 lbs | Nett Weight N/A 154 lbs | Diameter Bow N/A 3 1/4 in | Diameter Eye N/A 6 15/32 in | Diameter Pin N/A 3 1/4 in | Length Bolt N/A 17 29/32 in | Length N/A 21 5/32 in | Length Inside N/A 13 in | Securing Bolt Length N/A 5 1/2 in | Securing Bolt Thread N/A 12 mm | Thickness Nut N/A 1 17/32 in | Torque N/A 75 | Width Bow N/A 10 in | Width Eye N/A 3 9/32 in | Width N/A 16 17/32 in | Width Inside N/A 7 1/4 in | Working Load Limit N/A 75 |
Add To Cart
Request Quote |
